AquaStorm

Cloth Media Filter


The AquaStorm cloth media filtration system is designed to be an economical and efficient solution for the treatment of wet weather applications. This system utilizes a disk configuration and the exclusive OptiFiber PF-14® pile cloth filtration media to effectively filter high solids waste streams with and without the use of chemicals as determined necessary for application specific water quality. This system is ideal for wet weather applications due to its proven removal efficiencies and high quality effluent, even under varying influent conditions.




How It Works


AquaStorm™ Illustration

AquaStorm™ Dual Treatment

Dual Treatment


Side Stream


AquaStorm OPERATION

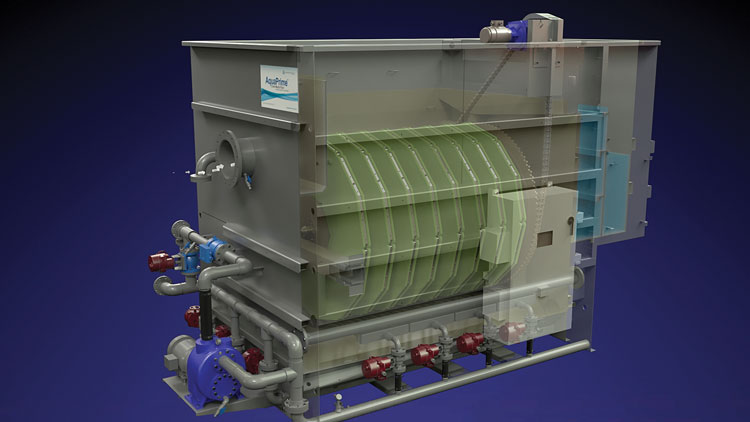

Filtration Mode

  • Influent wastewater/wet weather flow enters the filter by gravity
  • Stationary cloth media disks are completely submerged
  • Solids deposit on the outside of the cloth media forming a mat as filtrate flows through the media
  • Tank liquid level rises as headloss builds due to the collection of solids
  • Filtrate is collected in the hollow center tube and discharged over an effluent weir
  • Heavier solids settle to the specifically designed hoppered tank bottom


Backwash Mode

  • Solids are backwashed at a predetermined liquid level or time
  • Backwash shoes directly contact the cloth media and solids are removed by vacuum pressure using a backwash pump
  • Disks rotate slowly and two disks are backwashed at a time (unless a single disk is utilized)
  • Filtration is not interrupted
  • Backwash water is directed to waste handling facilities (thickening, digester, etc.)

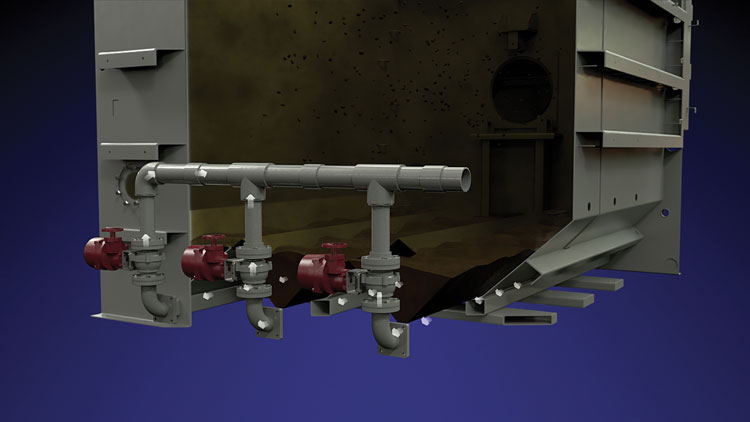

Solids Wasting Mode

  • Heavier solids in the collection hopper are removed on an intermittent basis
  • Backwash/Solids Pump provides suction to the solids collection manifold for wasting of settled solids
  • Solids are pumped back to the waste handling facilities (thickening, digesters, etc.)

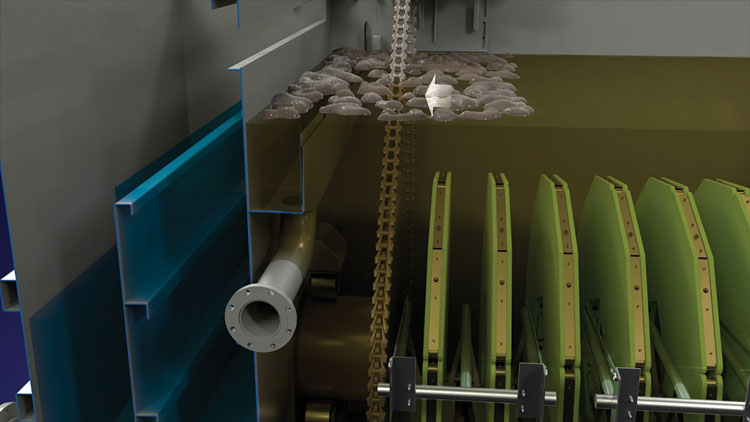

Floatable Wasting Mode

  • Floatable scum is allowed to collect on the water surface
  • After a preset number of backwashes, the water level is allowed to rise above the preset high level
  • As the water level increases, floating scum is removed by flowing over the scum removal weir
  • Scum wasting water is directed to the plant’s waste handling facility


Features & Specifications

  • Vertically oriented cloth media disks reduce required footprint
  • Each disk is lightweight, with removable segments for ease of maintenance
  • Effective backwash system that fluidizes cloth fibers to release stored solids
  • Can be configured for dual use application for tertiary and wet weather operation
  • Simple start-up and shutdown with unattended operation for remote locations
  • Automatic storage procedure for cleaning and draining the unit for offline storage

Benefits

  • Specifically designed floatable and solids removal zones
  • Available in several configurations
  • Fully automatic PLC control with color touchscreen HMI
  • Use with or without chemicals, depending on site-specific water quality requirements
  • Improves disinfection of wet weather flows
